Medium-sized Heat Press Machine

Medium-sized Heat Press Machine

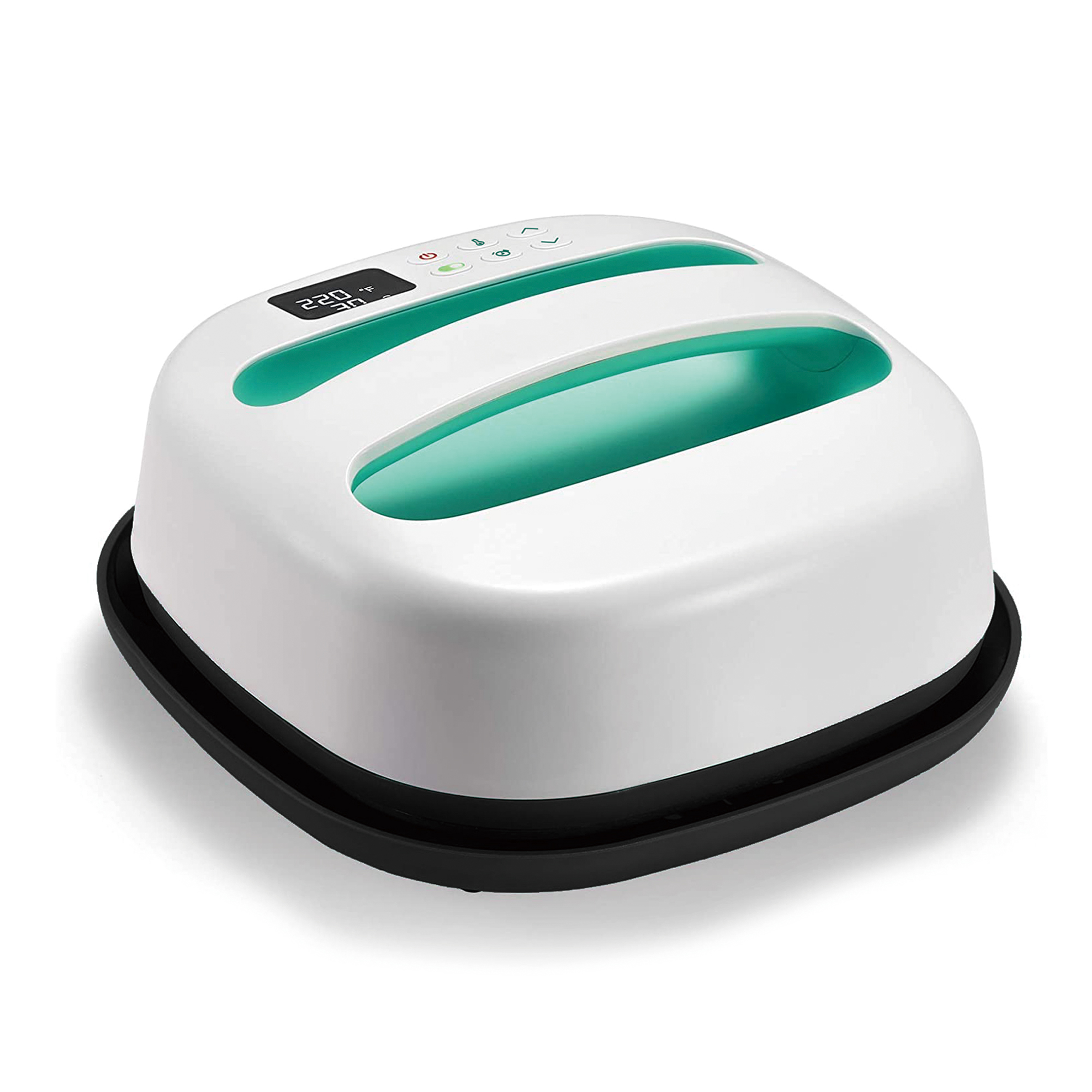

Our 4-model portable heat press lineup offers versatile compact solutions for all DIY and small-batch sublimation tasks. Featuring smart digital control, multi-size heating plates, dual voltage compatibility, and multiple color options. Each unit delivers stable high-efficiency heating for apparel, bags and custom crafts, with full safety certifications and flexible OEM support available.

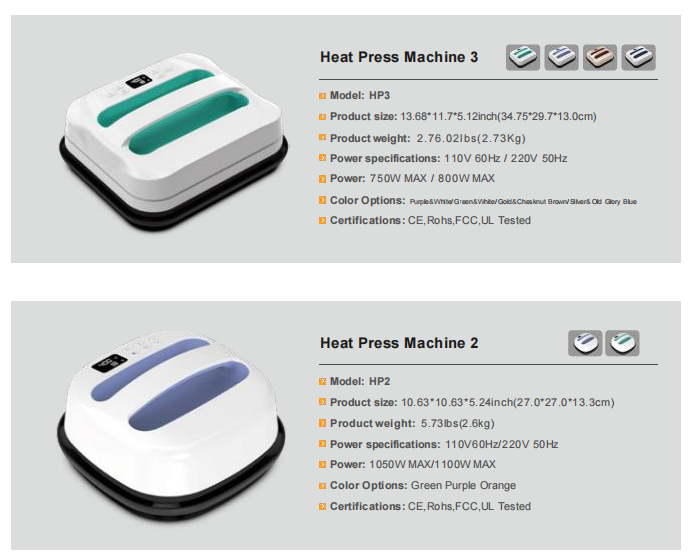

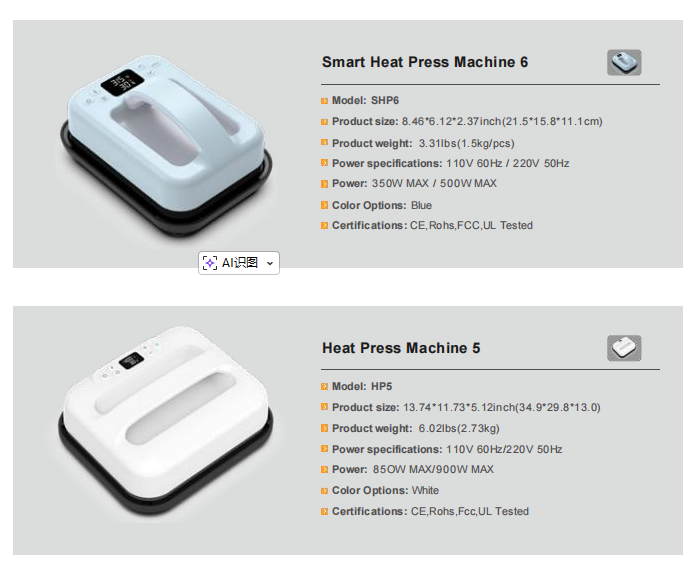

Parameter	HP6	HP5	HP3	HP2
Model	HP6	HP5	HP3	HP2

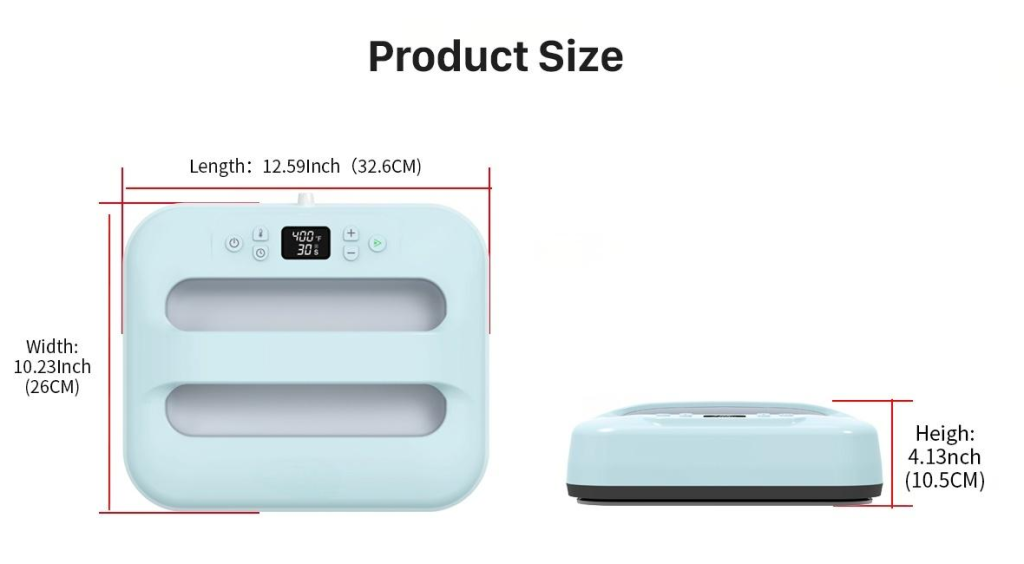

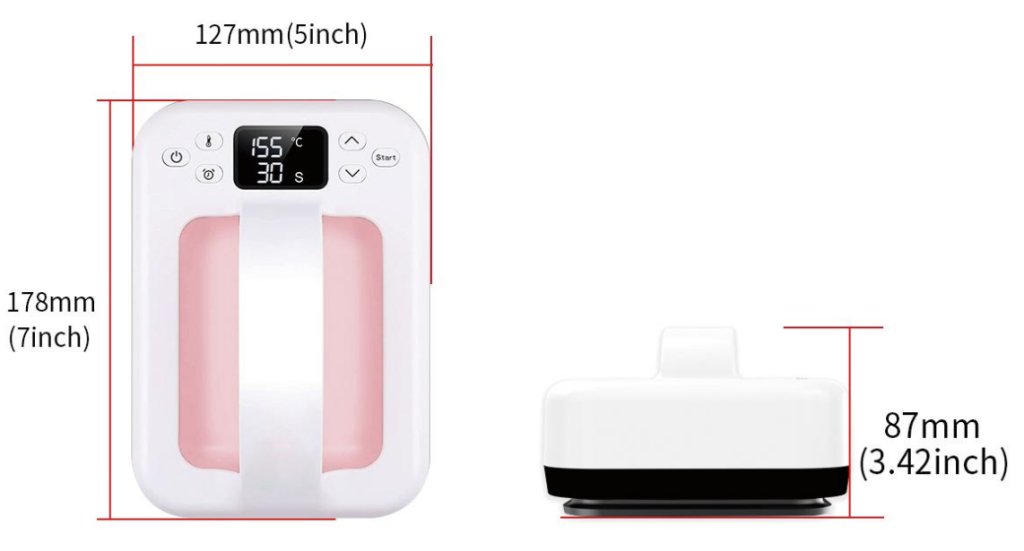

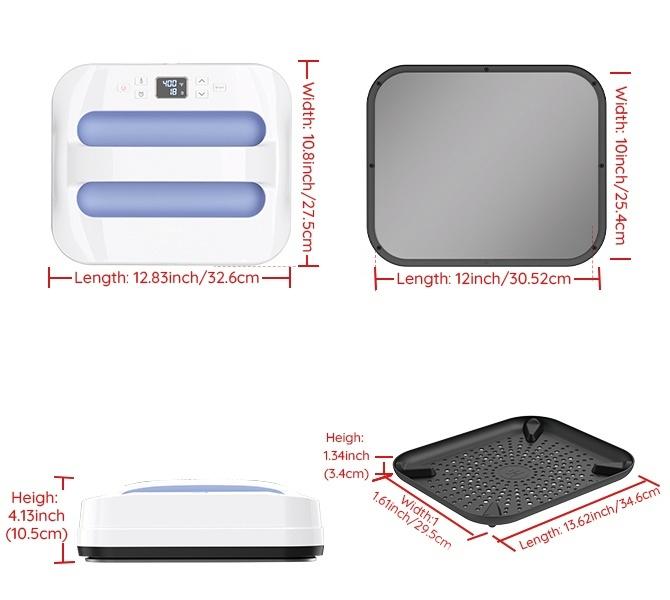

Overall Size (with base)	11.89×7.28×6.42 inch (30.2×18.5×16.3 cm)	15.16×13.78×7.09 inch (38.5×35×18 cm)	15.16×13.78×7.09 inch (38.5×35×18 cm)	11.81×11.81×7.09 inch (30×30×18 cm)

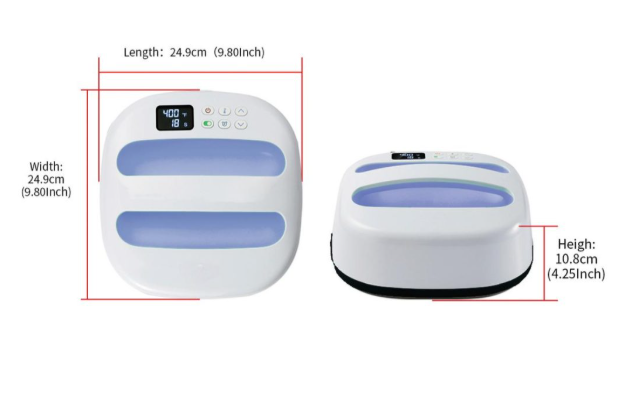

Heating Plate Size	7.01×4.80 inch(17.78×12.1 cm)	12.02×10.00 inch(30.5×25.4 cm)	12.02×10.00 inch(30.5×25.4 cm)	9.80×9.80 inch(24.9×24.9 cm)
Maximum Operating Temperature	400°F/205°C	400°F/205°C	400°F/205°C	400°F/205°C
Time to Reach Maximum Temperature	4min	4min	4min	3min
Default Number of Time & Temperature Press Loads	320°F/160°C 1 05	320°F/160°C /3 05	320°F/160°C /3 05	320°F/160°C /3 05
Pressure Adjustment Availability	N/A	N/A	N/A	N/A
Touchscreen Included	N/A	N/A	N/A	N/A
Display Screen Size	43mm*27mm	43mm*27mm	43mm*27mm	43mm*27mm
Net Weight	2.23 lbs (1.01 kg/pcs)/2.67 lbs (1.21 kg) with base	6.22 lbs (2.82 kg/pcs)/7.21 lbs (3.27 kg) with base	6.22 lbs (2.82 kg/pcs)/7.21 lbs (3.27 kg) with base	4.25 lbs (1.93 kg/pcs)/4.96 lbs (2.25 kg) with base
Power Specifications	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz
Max Power Output	350W MAX / 500W MAX	850W MAX / 900W MAX	750W MAX / 800W MAX	1050W MAX / 1100W MAX
Available Colors	Blue	White	Purple&White, Green&White, Gold&Chustnut Brown, Silver & Old Glory Blue	Green, Purple, Orange
Certifications	CE, RoHS, FCC, CE, UL Tested	CE, RoHS, FCC, CE, UL Tested	CE,RoHS,FCC,UL Tested	CE,RoHS,FCC,UL Tested
